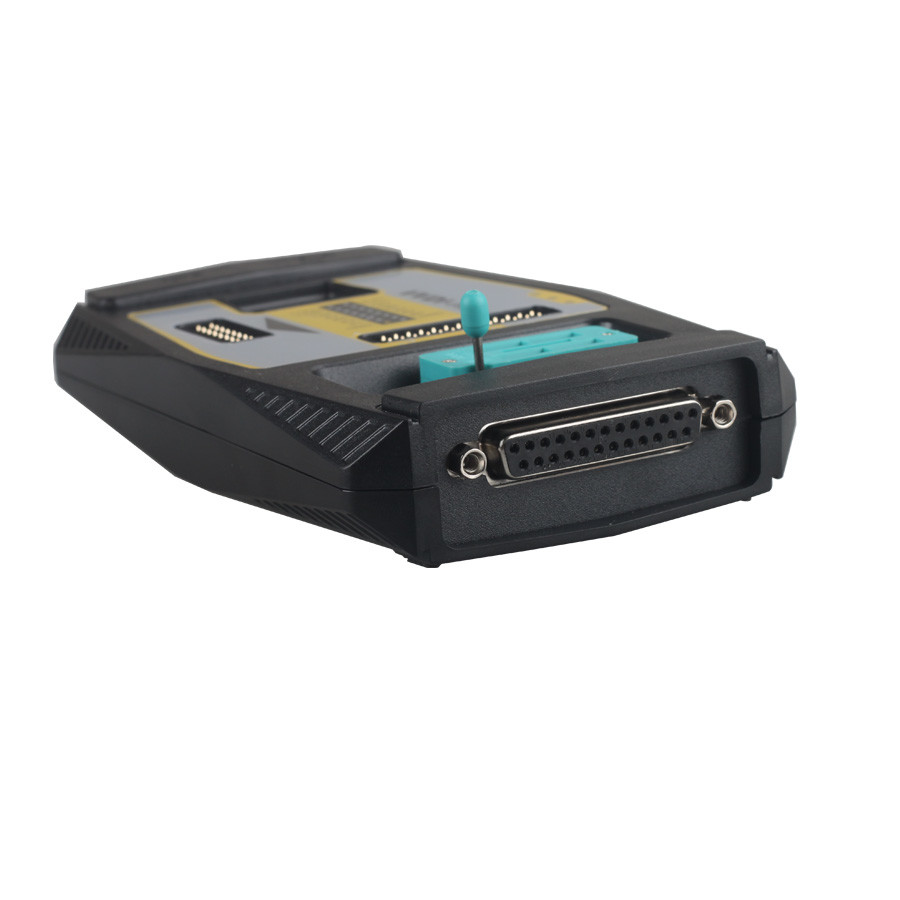

Original Xhorse VVDI Prog Car Key Programmer V4.6.4 Support MC9S08 Series, MC68HC(9)12 Series

Basic Information
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1 Piece
Price: Best Price
Packaging Details: Standard Package
Delivery Time: Within 48 Hours
Payment Terms: TT/PayPal /Western Union/ Money Gram
Supply Ability: In Stock
Detail Information
Highlight:

auto key programmer

,

automotive locksmith tools


Product Description

The built-in update software allows user to update VVDI Prog firmware timely.
High-speed USB communication interface enable the software automatically connect.
Smart operation mode: the possible causes of error will be listed
Reserve ports: for future update.
The self-test function enable you check if the machine works well.
Can supply power via USB cable, the software will automatically prompt if the external USB power supply is needed.



VVDI PROG Programmer



Top 7 seasons to get VVDI Prog V4.6.4:
1.Support R&W lots of chips, include MC9S08 series, MC68HC(9)12 series,MC9S12 series, V850 series, H8X series, R8C series, PCF79XX series and most eeprom chips
2.Support chip data verify, check blank function
3.Support data file compare function
4.Support R&W BMW N20, N55 ECU ( show ISN directly )
5.Stable R&W MC9S12XE series chips (5M48H/1N35H/2M53J/3M25J etc.)
6.Support renew PCF79XX remote, currently support BMW E/F series
7.Lots of connection diagram

Buy VVDI-Prog programmer, get free BMW ISN read function and NEC, MPC, Infineon etc chip continously update service

VVDI PROG latest software version V4.6.4 update

-------------------------------------
v4.6.4 (2017-08-30)
* This version DON't need update firmware
* Fix some bugs
+ Add VVDI PROG USER MUNUAL 4.6.1version in Doc folder
* Fix MC9S12XS/MC9S12XHY series PFLASH write error problem
* Fix SRS-VW52-V1 diagram
+ Add AT24C01(CLIP),AT24C02(CLIP), AT24C04(CLIP), AT24C08(CLIP), AT24C16(CLIP), AT24C32(CLIP), AT24C64(CLIP), AT24C128(CLIP), AT24C256(CLIP),
AT24C512(CLIP), AT24C1024(CLIP), AT25010(CLIP), AT25020(CLIP), AT25040(CLIP), AT25080(CLIP), AT25160(CLIP), AT25320(CLIP), AT25640(CLIP), AT25128(CLIP),
AT25256(CLIP), AT25512(CLIP), AT93C06[A](CLIP), AT93C46[A](CLIP), AT93C56[A](CLIP), AT93C57[A](CLIP), AT93C66[A](CLIP), AT93C76[A](CLIP),
AT93C86[A](CLIP) options in <1-EEPROM&FLASH>-> (Need EEPROM CLIP ADAPTER)
+ Add CAT24C/W01(CLIP), CAT24C/W02(CLIP), CAT24C/W04(CLIP), CAT24C/W08(CLIP), CAT24C/W16(CLIP), CAT24C/W32(CLIP), CAT24C/W64(CLIP), CAT25C128(CLIP),
CAT25C256(CLIP), CAT93C46[A](CLIP), CAT93C56[A](CLIP), CAT93C57[A](CLIP), CAT93C66[A](CLIP), CAT93C76[A](CLIP), CAT93C86[A](CLIP) options in
<1-EEPROM&FLASH>-> (Need EEPROM CLIP ADAPTER)
+ Add XL[S]24C01(CLIP), XL[S]24C02(CLIP), XL[S]24C04(CLIP), XL[S]24C08(CLIP), XL[S]24C16(CLIP), XL[S]93C/LC06(CLIP), XL[S]93C/LC46(CLIP), XL[S]93C/LC56(CLIP),
XL[S]93C/LC66(CLIP) options in <1-EEPROM&FLASH>-> (Need EEPROM CLIP ADAPTER)
+ Add FM24C02(CLIP), FM24C03(CLIP), FM24C04(CLIP), FM24C08(CLIP), FM24C09(CLIP), FM24C16(CLIP), FM24C17(CLIP), FM93CS06(CLIP), FM93CS46(CLIP), FM93CS56(CLIP),
FM93CS66(CLIP), NM24C02(CLIP), NM24C03(CLIP), NM24C04(CLIP), NM24C05(CLIP), NM24C08(CLIP), NM24C09(CLIP), NM24C16(CLIP), NM24C17(CLIP), NM24U17(CLIP),
NM24C32(CLIP), NM24C65(CLIP), NM93C06(CLIP), NM93C46(CLIP), NM93C56(CLIP), NM93C66(CLIP), NM93C86(CLIP), NM93CS06(CLIP), NM93CS46(CLIP), NM93CS56(CLIP),
NM93CS66(CLIP) options in <1-EEPROM&FLASH>-> (Need EEPROM CLIP ADAPTER)
+ Add 24AA02(CLIP), 24AA04(CLIP), 24AA08(CLIP), 24AA16(CLIP), 24AA164(CLIP), 24AA32(CLIP), 24AA128(CLIP), 24AA256(CLIP), 24C02(CLIP), 24C04(CLIP), 24C32(CLIP),
24LC02(CLIP), 24LC04(CLIP), 24LC08(CLIP), 24LC16(CLIP), 24LC164(CLIP), 24LC32(CLIP), 24LC64(CLIP), 24LC65(CLIP), 24LC128(CLIP), 24LC256(CLIP),
93C/LC/AA46A(CLIP), 93C/LC/AA56A(CLIP), 93C/LC/AA66A(CLIP), 93C/LC/AA76A(CLIP), 93C/LC/AA86A(CLIP), 93C/LC/AA46B(CLIP), 93C/LC/AA56B(CLIP), 93C/LC/AA66B(CLIP),
93C/LC/AA76B(CLIP), 93C/LC/AA86B(CLIP), 93C/LC/AA46C(CLIP), 93C/LC/AA56C(CLIP), 93C/LC/AA66C(CLIP), 93C/LC/AA76C(CLIP), 93C/LC/AA86C(CLIP) options in
<1-EEPROM&FLASH>-> (Need EEPROM CLIP ADAPTER)
+ Add M24C01(CLIP), M24C02(CLIP), M24C04(CLIP), M24C08(CLIP), M24C16(CLIP), M24C32(CLIP), M24C64(CLIP), M24C128(CLIP), M24C256(CLIP), M24C512(CLIP),M93C06(CLIP),
M93C46(CLIP), M93C56(CLIP), M93C66(CLIP), M93C76(CLIP), M93C86(CLIP), M95010(CLIP), M95020(CLIP), M95040(CLIP), M95080(CLIP), M95160(CLIP), M95320(CLIP), M95640(CLIP),
M95128(CLIP), M95256(CLIP), M95512(CLIP), ST24C01(CLIP), ST24C02(CLIP), ST24C04(CLIP), ST24C08(CLIP), ST24C16(CLIP), ST24E16(CLIP), ST24E32(CLIP), ST24W02(CLIP),
ST24W04(CLIP), ST24W08(CLIP), ST24W16(CLIP), ST25C01(CLIP), ST25C02(CLIP), ST25C04(CLIP), ST25C08(CLIP), ST25C16(CLIP), ST25E16(CLIP), ST25E32(CLIP), ST93CS56(CLIP),
ST93CS57(CLIP), ST93CS66(CLIP), ST93CS67(CLIP), ST93CS47(CLIP), ST93CS46(CLIP) options in <1-EEPROM&FLASH>-> (Need EEPROM CLIP ADAPTER)
+ Add X24C01(CLIP), X5043(CLIP), X5045(CLIP) options in <1-EEPROM&FLASH>->(Need EEPROM CLIP ADAPTER)
+ Add ME7.4.5-FLASH-ST10F275, ME7.4.5-EEPROM-95320 options in <3-ECU>->
+ Add BCM2(D70F3380) option in <4-IMMOBILIZER>->
+ Add EWS3-KLINE(0D46J) option in <4-IMMOBILIZER>-> (Need EWS3 ADAPTER)
+ Add BCM-XEP100(2009--) option in <4-IMMOBILIZER>->
+ Add LAGUNA-UCT(2006) option in <4-IMMOBILIZER>->
+ Add BCM2(D70F3380) option in <4-IMMOBILIZER>->
+ Add BJ40-DASHBORAD, E150-DASHBORAD(2014), EX200-BCM(2016) options in <5-DASHBORAD>->
+ Add EQ-DASHBOARD(2017) option in <5-DASHBORAD>->
+ Add AUTOPLEAD-DASHBOARD(2017) option in <5-DASHBORAD>->
+ Add IEV-DASHBOARD(2017) option in <5-DASHBORAD>->
+ Add BEETLE-DASHBOARD(2005), BEETLE-DASHBOARD(2010) options in <5-DASHBORAD>->
+ Add REGAL-SRS(2014) option in <7-ARIBAG>->
+ Add GOLF7-SRS option in <7-ARIBAG>->
+ Add A6L-C7-EPB-MODULE option in <8-OTHER>->
+ Add 300C-PDC-MODULE(2007--) option in <8-OTHER>->
+ Add MAGOTAN-LEW-MODULE, POLO-J393-EEPROM, TIGUAN-EPB-MODULE options in <8-OTHER>->
Notes: about eeprom clip adapter(NO need soldering) or EWS 3 adapter,please contact dealer for help.

Latest Software Version: V4.6.4

VVDI PROG latest software version V4.6.0 update
-------------------------------------
v4.6.0 (2017-07-26)
* This version DON't need update firmware
* Fix some bugs
+ Add VVDI PROG USER MUNUAL 4.6.0 version in Doc folder
* Change some RENESAS-V850 chips DFLASH size to 64KB
* Fix GM-BCM3 option
* Fix V850E2 series diagrams
* Change KESSY(2008--) diagram
+ Add V850E-SK3H,V850-SJ3H series diagrams
+ Add NM93CS06, NM93CS46, NM93CS56, NM93CS66, FM93CS06, FM93CS46,FM93CS56,
FM93CS66 options in <1-EEPROM&FLASH>->
+ Add M93S06, M93S46, M93S56, M93S66, ST93CS46, ST93CS47, ST93CS56, ST93CS57,
ST93CS66, ST93CS67 options in <1-EEPROM&FLASH>->
+ Add D80(ADAPTER), D160(ADAPTER), M350803(ADAPTER), M350806(ADAPTER), M35080V6(ADAPTER),
M35080VP(ADAPTER) options in <1-EEPROM&FLASH>->(Need M35080/D80 ADAPTER)
+ Add MC9S12HN64_UNSECURED, MC9S12HZ64_UNSECURED, MC9S12HN64_SECURED,
MC9S12HZ64_SECURED options in <2-MCU>->
+ Add ST72321(R/AR)6, ST72F321(R/AR)6, ST72321(R/AR/J)7, ST72F321(R/AR/J)7, ST72321(R/AR/J)9,
ST72F321(R/AR/J)9, ST72521B(R/AR)6, ST72F521(R/AR)6, ST72521B(M/R/AR)9, ST72F521(M/R/AR)9 options
in <2-MCU>->
+ Add SPC5606S option in <2-MCU>->
+ Add ME7.5.20(ST10F275) option in <3-ECU>->
+ Add KESSY(2008--) option in <4-IMMOBILIZER>->
+ Add KEYLESS-ENTRY-MODULE(2009--)option in <4-IMMOBILIZER>->
+ Add HAVAL-H9-BCM(D70F3632) option in <4-IMMOBILIZER>->
+ Add BCM(2009--) option in <4-IMMOBILIZER>->
+ Add XINBAO(MC9S08LG16) option in <5-DASHBORAD>->
+ Add CRUZE(D70F3423) option in <5-DASHBORAD>->
+ Add DASHBORAD(2013--)(SPC5604S), DASHBORAD(2013--)(SPC5606S), FIESTA(3L16Y),
FOCUS-C-MAX(2009) options in <5-DASHBORAD>->
+ Add BESTURN-B70-SRS(D70F3623) option in <7-ARIBAG>->
+ Add ACCORD-SRS(SPC56AP54L3) option in <7-ARIBAG>->
+ Add SRS-VW20(SPC560P50L3) option in <7-ARIBAG>->
+ Add A4L-LEW-MODULE(2013) option in <8-OTHER>->
+ Add EVOQUE-EPB-MODULE(2013) option in <8-OTHER>->
https://mega.nz/#!GoYhgIoS!Q13Sw-b6sDxld2mJSn5HunYYHZwg7EdXqF_xa3V_ecw
password:123456

VVDI Prog V4.5.9 (2017-06-28)
* This version DON't need update firmware
* Fix some bugs
+ Add VVDI PROG USER MUNUAL 4.5.9 version in Doc folder
* Update polish language
+ Update V850 D-Flash format conversion tool
* Fix STM8 series options error
* Fix MED17.1 option error
* Fix V850E-DG3 diagram error
* Fix ME17.9.11.1 diagram error
* Fix BAOJUN630 diagram error
+ Add MPC5606B, MPC5607B, MPC5602D, MPC5606E, MPC5601P, MPC5602S, MPC5604S options
in <2-MCU>->
+ Add SPC560B50B2, SPC560B64L3, SPC560C40L1, SPC560C50L1, SPC56AP54L3, SPC56AP54L5,
SPC56AP60L3, SPC56AP60L5 options in <2-MCU>->
+ Add MT60(TC1766) option in <3-ECU>->
+ Add V3 diagram in <3-ECU>->->
+ Add KESSY(2008--) option in <4-IMMOBILIZER>->
(Need to use with VVDI2,support Touareg, Bentley, A8, Cayenne, Phaeton with kessy module (IMMO4 system) after 2008)
+ Add XC60-REVIEW-MIRROR option in <4-IMMOBILIZER>->
+ Add SENOVA-D70 option in <5-DASHBORAD>->
+ Add EXCELLEGT option in <5-DASHBORAD>->
+ Add AVEO option in <5-DASHBORAD>->
+ Add FIESTA option in <5-DASHBORAD>->
+ Add K5(2017) option in <5-DASHBORAD>->
+ Add FREELANDER(2004) option in <5-DASHBORAD>->
+ Add MG3(2016) option in <5-DASHBORAD>->
+ Add EXCELLEGT-SRS option in <7-ARIBAG>->
+ Add ALSVIN-SRS option in <7-ARIBAG>->
+ Add CITY-SRS(MPC5604P) option in <7-ARIBAG>->
+ Add 2008-SRS option in <7-ARIBAG>->
+ Add SRS-VW20LE(SPC560P50L3) option in <7-ARIBAG>->
+ Add A4L-LWR-MODULE(2010), A6L-C6-AMP, A8L-AMB-MODULE(2011), ESL-HC08GR16-V2 options in <8-OTHER>->
+ Add 528-SEAT-MODULE option in <8-OTHER>->

VVDI PROG V4.5.8 Free Download Password: 123456
Firmware Version: 1.2.2


VVDI Prog V4.5.8 (2017-05-25)
* This version DON’t need update firmware
* Fix some bugs
+ Add VVDI PROG USER MUNUAL 4.5.8 version in Doc folder
+ Add Arabic, Czech, Spanish,French, Italian, Portuguese,Russian, Turkish, support select in Language option
+ Add MPC5602BxLH, MPC5602BxLL, MPC5602BxLQ, MPC5603BxLH, MPC5603BxLL, MPC5603BxLQ, MPC5604B,
MPC5602CxLH, MPC5602CxLL, MPC5603CxLH, MPC5603CxLL, MPC5604C, MPC5604E, MPC5602P,MPC5603P,
MPC5604P options in <2-MCU>->
+ Add SPC560B40L1, SPC560B40L3, SPC560B40L5, SPC560B50L1, SPC560B50L3, SPC560B50L5, SPC560B54L3,
SPC560B54L5, SPC560B60L3, SPC560B60L5, SPC560B60L7, SPC560B64L5, SPC560B64L7, SPC560C40L3,
SPC560C50L3, SPC560D30L1, SPC560D30L3, SPC560D40L1, SPC560D40L3, SPC560P44L3, SPC560P44L5,
SPC560P50L3, SPC560P50L5, SPC560P54L3, SPC560P54L5, SPC560P60L3,
SPC560P60L5 options in <2-MCU>->
+ Add ME7.9.7.1 option in <3-ECU>->
+ Add DODGE-JOURNEY-WIN(2010) option in <4-IMMOBILIZER>->
+ Add CS10-IMMO option in <4-IMMOBILIZER>->
+ Add T70-IMMO option in <4-IMMOBILIZER>->
+ Add B40, E130, SENOVA-D50 options in <5-DASHBORAD>->
+ Add BORGWARD(2017) option in <5-DASHBORAD>->
+ Add ALSVIN-V3(2012), CS35(2015), CX20(2012), HONOR, OUSHANG(2017),
RAETON(2013) options in <5-DASHBORAD>->
+ Add FXAUTO-LZ, VENUCIA-D50 options in <5-DASHBORAD>->
+ Add CS10 option in <5-DASHBORAD>->
+ Add QUEST(2006) option in <5-DASHBORAD>->
+ Add BESTURN-X80 option in <5-DASHBORAD>->
+ Add BAOJUN630, BAOJUN630(2015), BAOJUN730, MG6,
SGMW-RONGGUANG options in <5-DASHBORAD>->
+ Add POLO option in <5-DASHBORAD>->
+ Add S80(2009) option in <5-DASHBORAD>->
+ Add H330 option in <5-DASHBORAD>->
+ Add DOMY-X5(2015),T600(2015), Z500(2015) option in <5-DASHBORAD>->
+ Add RIICH-M1-SRS option in <7-ARIBAG>->
+ Add BESTURN-B70-SRS option in <7-ARIBAG>->
+ Add ECOSPORT-SRS, ESCORT-SRS options in <7-ARIBAG>->
+ Add DISCOVERY4-SRS option in <7-ARIBAG>->
+ Add LOVA-SRS option in <7-ARIBAG>->
+ Add DKG-MODULE(2008) option in <8-OTHER>->
+ Add GL8-KG-MODULE option in <8-OTHER>->
+ Add RAETON-HVAC-MODULE(2013), RAETON-KG-MODULE(2013) options in <8-OTHER>->
+ Add CRUZE-CD-PLAYER option in <8-OTHER>->
+ Add FENGGUANG580-KG-MODULE option in <8-OTHER>->
+ Add FOCUS-BCM option in <8-OTHER>->
+ Add HVAC-MODULE(2015), HAVAL-H9-4WD-MODULE options in <8-OTHER>->
+ Add IX35-ASSY-SMARTKEY-UNIT option in <8-OTHER>->
+ Add RUIYI-KG-MODULE(2009) option in <8-OTHER>->
+ Add GOLF6-PDC-MODULE, MAGOTAN-EPB-MODULE(2013), NEW-JETTA-PDB-MODULE,
NEW-SANTANA-PDB-MODULE options in <8-OTHER>->

How To Update VVDI Prog Programmer Online

This function require internet support
Click the “Upgrade” button enter the upgrade interface, show as following picture
Original Xhorse VVDI Prog Car Key Programmer V4.6.4  Support MC9S08 Series, MC68HC(9)12 Series 0
Enter update interface, if software show ”communication with server failed”,please close your Anti-virus and computer firewall and retry. If software show “unable to find equipment”, please reconnect device
Tip information show the latest software version and upgrade information
Device information show the device SN, device firmware version and the latest firmware version

Firmware upgrade steps:
1. Select the firmware version
2. Click “Start Firmware Upgrade” button
3. Don’t close or pull out USB cable before upgrade finished

Software upgrade steps:
1. Click “Software Link 1” or “Software Link 2” button, download software from the web
2. Extract the file

VVDI PROG Connection for Maybach:


v414 Update Version Display 1

VVDI Prog Connection for Sprinter:
v414 Update Version Display 2


VVDI Pro Update Version

VVDI Prog Programmer Device Units:

Original Xhorse VVDI Prog Car Key Programmer V4.6.4  Support MC9S08 Series, MC68HC(9)12 Series 4

1.VVDI Prog device
2.EEPROM Socket
3.EEPROM Adapter
4.MC9S12 Reflash Cable V1
5.MCU Reflash Cable
6.ECU Reflash Cable
7.USB B-Tyte Cable
8.TB28FXXX adapter (optional)
9.PCF79XX adapter (optional)


VVDI Prog Programmer Unit Description:

1.16 Pin DIP socket Function:
Read EEPROM chips Use method: Follow the image direction when insert the DIP chip (PIN1 as yellow point show as the picture);
SOP chip need soldering on 16Pin adaptor first, then insert the chip follow the image direction

VVDI PROG Programmer-1
2. MCU Reflash Cable
Function: Read & Write MC68HC(9)12, V850, H8X, R5C series chips,current version is V2
Use method: Soldering the line on pin of chip before read & write
Notes:
(1) Please check all connection lines,ensure correct and reliable connection
(2) Please Don’t lengthen CLK and GND-C line, maybe cause read data failed.

Original Xhorse VVDI Prog Car Key Programmer V4.6.4  Support MC9S08 Series, MC68HC(9)12 Series 6

3. ECU Reflash Cable
Function: Read & Write engine ECU
Use method: Connect the ECU and R&W
Notes: Please check all connection lines, ensure correct and reliable connection

VVDI PROG Programmer-3

4.MC9S12 Reflash Cable
Function: Read & Write MC9S08, MC9S12 series chips, current version is V1
Use method: Soldering the line on pin of chip before read & write
Notes:
(1) Please check all connection lines,ensure correct and reliable connection.
(2) Please Don’t lengthen CLK and GND-C line, maybe cause read data failed.

VVDI PROG Programmer-4

VVDI Prog Programmer Supported Type List:

Memory:
ATMEL,CATALYST,EXEL,FAIRCHILD,INTEL,MICROCHIP,MITSUBISHI,ST,TOSHIBA,XICOR

MCU:
RENESAS V850,RENESAS H8X,RENESAS R8C,MOTOROLA MC68HC(9)08,MOTOROLA MC68HC(9)12
MOTOROLA MC9S08,MOTOROLA MC9S12,NXP PCF79XX,ST ST10F,INFINEON XC2XXX,ATMEL,ATMEGA XXXX,
INFINEON XC164CS,MICROCHIP PIC18F,

VVDI Prog Programmer Support Model List:

ECU List:
BMW E Series,BMW F Series,BOMBARDIER,CHANGAN,DELPHI,MAGNETI,MARELLI,,OTHER

IMMOBILIZER List:
AUDI,BENZ,BMW,BUCIK,CHEVROLET,STEC,CHRYSLER,FIAT,,GREATWALL,INFINITI,LANDROVER,JAGUAR,NISSAN,OPEL,PORSCHE,,SAICMOTOR,VOLKSWAGEN,ZHONGHUA.

DASHBOARD List:
BUICK,CHANGAN,CHERY,CHEVROLET,DONGFENG,FAW,,GEELY,GREATWALL,HAFEI,TOYOTA,HANTENG,HAIMA,HONDA,JAC,JAGUAR,JINBEI,JMC,LUXGEN,NISSAN,SGMW,VOLOVO,ZHONGHUA,ZOTYE,

REMOTE List:
BMW E Series,BMW F Series
...

VVDI Prog Programmer Feedback:

did a few tests today and this is what I found out.
It seems that VVDI prog reading speed is dependent on the processor speed of the computer.
CAS3 0L15Y flash read times
Centrino processor @ 1.6ghz Windows XP = 12mins
Core2 Duo processort @ 2.5ghz Windows 7 32 bit = 5 mins
i7 @ 4.4ghz Windows 7 64 bit = 2mins 30 seconds.
Other programmers do not seem to be affected by processor speed at all.
I also would of thought this was a fairly easy question to answer without me doing all the testing





Contact Information:

Whatsapp: +86-13480159018
Live Support: Chat with us online
Email: tina@pro-diagtool.com
Skype: oneflysky





Contact Details
Tina Lee

Phone Number : 86 13026631343

WhatsApp : +8613026631343
