WIFI ELM327 OBD2 Car Scan Tool Support for iPhone ipad iPod

Basic Information
Place of Origin: China
Certification: CE
Model Number: G04
Minimum Order Quantity: 1 Piece
Price: Best Price
Packaging Details: Standard Package
Delivery Time: Within 48 hours
Payment Terms: TT/PayPal /Western Union/ Money Gram
Supply Ability: In Stock
Detail Information
High Light:

auto diagnostic tools


xtool scan tool

Product Description

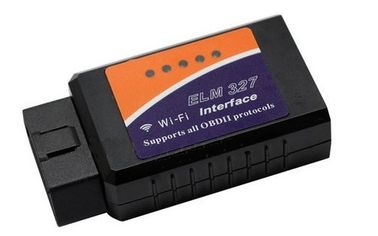

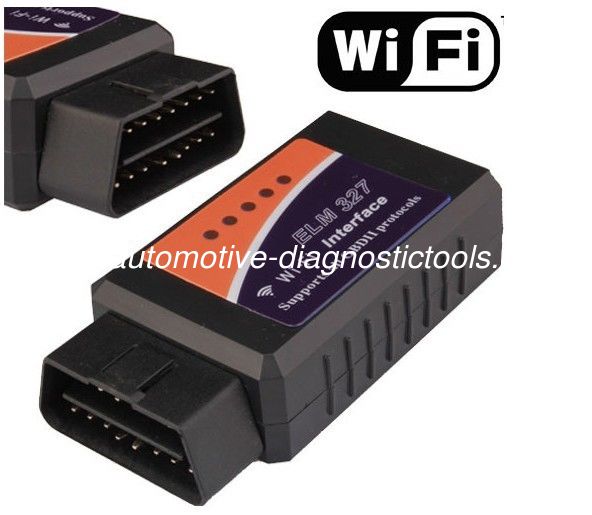

WIFI ELM327 Wireless OBD2 Auto Scanner Adapter Scan Tool for iPhone ipad iPod

We our factory and we accept any kinds OEM customize for ELM 327 .

and we have many type of it .  hope you can contact us to get best price to beat your partner .



  1. wifi 327 can be used on Iphone,Ipad and so on...
  2. Wifi OBD VGATE Technical Specifications
  3. SSID: CLKDevices
  4. IP:
  5. Subnet:
  6. Port: 35000
  7. Range: 50 ft (Line of sight)
  8. Antenna: Internal
  9. Power Consumption: 0.75 Watts (With Power Switch)
  10. Wifi Standard: 802.11a/b/g
  11. Operating Temperature: -15 to 100 Deg Celsius
  12. Plastic: Automotive Grade
  13. Physical Dimensions: 2.75 x 1.25 x 1.2 inches



CLK is capable of communicating with vehicles which adopt following protocols:

  1. ISO 9141
  2. ISO 11898(aka. CAN)
  3. ISO 14230(aka. KWP2000)
  4. ISO 15765(aka. CAN)
  5. SAE J1939


WI-FI OBD AUTO CHECKER is able to detect and interpret these protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, iPhone, iPod touch, iPad and so on). There are plenty of software packages available, which are fully compatible with WI-FI OBD AUTO CHECKER. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained.


WI-FI OBD AUTO CHECKER is measuring only 2.7 x 1.25x 0.9 inches, and it comes attached with a 6 ft OBDII cable for easy installation. It also comes included with a power switch built-in to prevent the need for having to constantly disconnect your unit from the OBDII port. It is compatible with 1996 and later vehicles. Connecting to your iPhone / iPod touch /iPad is made by WIFI connection in adHoc mode.

Elder OBD compatible vehicles has a sticker indicates that the vehicle is OBD compatible. Model year 1996 and newer vehicles are compliant by default, and will not have this sticker.


Following are some of the parameters which could be read from the vehicle.

  1. Vehicle Speed
  2. RPM
  3. Fuel Consumption*
  4. Engine Coolant Temp
  5. Fuel Pressure
  6. Calculated Engine Load
  7. Throttle Position
  8. Intake Manifold Pressure
  9. Air Intake Temp
  10. Timing Advance
  11. Mass Air Flow
  12. Fuel Level
  13. Barometric Pressure
  14. EVAP System Vapor Pressure
  15. Fuel Trim



1 x ELM327 WiFi Wireless OBD2 Interface
1 x Software CD
