Auto ECU Programmer , FGTECH Galletto 2 Master New Version V54

Basic Information
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1 piece
Price: Best Price
Packaging Details: Standard Package
Delivery Time: Within 48 hours
Payment Terms: TT/PayPal /Western Union/ Money Gram
Supply Ability: In Stock
Detail Information
Product Name: Auto ECU Programmer Hardware Version: V54
Language: Italian, English, German, French, Spanish Portuguese, Czech, Turkish Note: It Must Be Installed In Windows Xp System
High Light:

ecu programming tool

,

xtool heavy duty scanner


Product Description

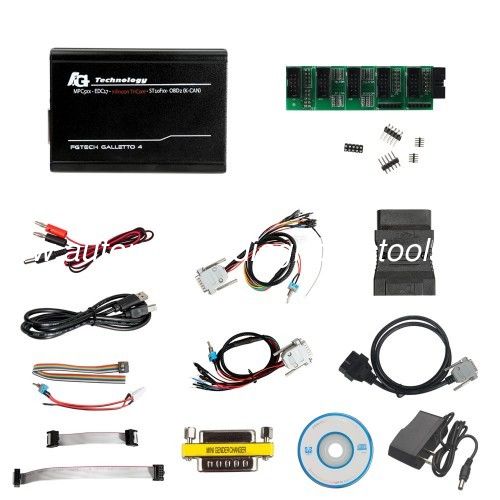

FG Tech Galletto 2-Master V54 BDM-OBD
1 It is a famous chip tuning tool for all cars, trucks, motorcycles, Marine, BDM MPCxx, BDM Boot Mode, checksum.
2.This item cannot only work as fgtech galletto 4-Master, but can also work for BDM-OBD.
Latest Version V54 FGTech Galletto 4 Master BDM-OBD Function

Top 6 Reasons To Get FGTech Galletto 4:

1. Latest Version: V54
2. Supported Operating System: windows XP. more friendly than Fgtech v53 , much easier to operate
3. Unlock Version: Can Use Directly. No Need To Activate
4. FGTECH V54 PCB board
5. Supported Languages: English, Italian, German, French, Spanish, Portuguese, Czech, Turkish
6. Support Tricore Function

Notice:
FGTech V54, only update the firmware, not software

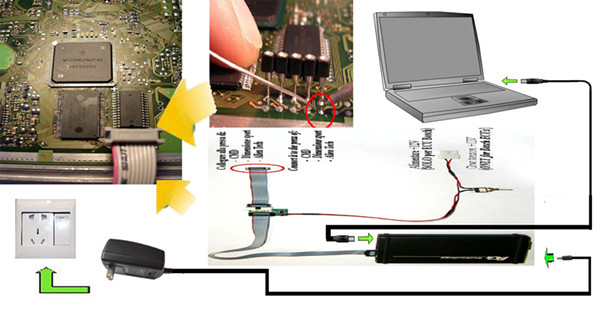

FG Tech Galletto BDM Connection:

FG Tech Galletto BDM Connection

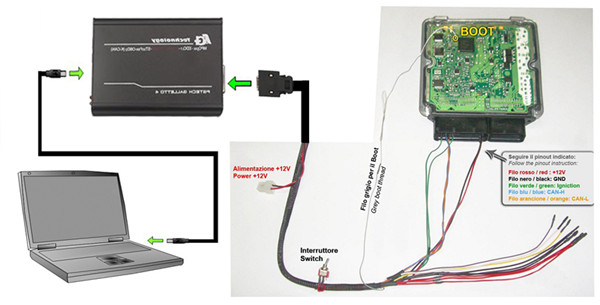

FG Tech Galletto Boot Connection

FG Tech Galletto boot Connection

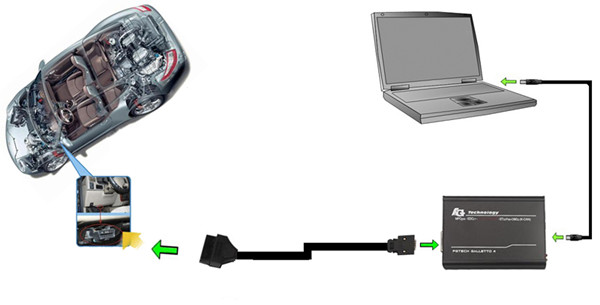

FG Tech Galletto OBD Cable Connection

FG Tech Galletto obd  Connection

FG Tech Galletto 4 Maste Description:

FGTech Galletto 4-Master this new system developed with high-speed USB2 technology is the fastest and most secure product on the market, it is easy to install and use by anyone. Our system comes furnished complete with all Car, Truck, Motorbyke, Marine, BDM MPCxx , BDM Boot Mode, checksum.

V54 FGTech Galletto 4 Boot Mode System:

NEW JTAG - BDM - MOTOROLA - FREESCALE - INFINEON
Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 - Mair 8GMF
New Delphy DCM3.5xx DCM3.7xx TRW
Motorola Freescale MPC 555/556/561/562/563/564/565
Motorola MC 68332 - MC YQQCU - MC 68377 Trionic 5/7/8 GM-OPEL-SAAB
Motorola MC 68376 Campi 01 Lamborghini - Lotus
Motorola MC 68336 MEMS D5 ROVER
Motorola ZC 439615 - ZC 439507 IAW FIAT - VAG
New Line OBD protocols VPM GM - Hummer-Corvette-Munstang-Blazer-Cadilac
New Line OBD protocols Tx-Rx - Subaru - Mitsubischi - Hitachi - Denso ecu

FGTech Galletto 4 Automatic Checksum:
All old protocols included from Bosch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / Denso
Boot Mode C167x / ST10, Boot Mode Infineon With password Bosch , Siemens
Motorola MC68332 - MCYQQCU - MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507
Motorola Freescale MPC 555/556/561/562/563/564/565
Freescale MPC 5553/5554/5565/5566
BDM

5-30V Car / Industrial Vehicles, L line / K line KWP, CAN
Can Bus V2.0 50Kb > 1000Kb
J1850 VPW PWM GM -FORD
Rx Tx RS232,
RS 485,
Automatic setup Pull up K-L line 250, 500, 1000 ohm,
Automatic setup termination Can bus 0, 60,120 ohm,

FGTech Galletto 4 Master Version:

Recovery Mode Completa
Funzione scan tool per eliminare i DTC
Function scan tool for erase the DTC
Controllo tensione di batteria auto in tempo realeCheck tension of battery car in real time

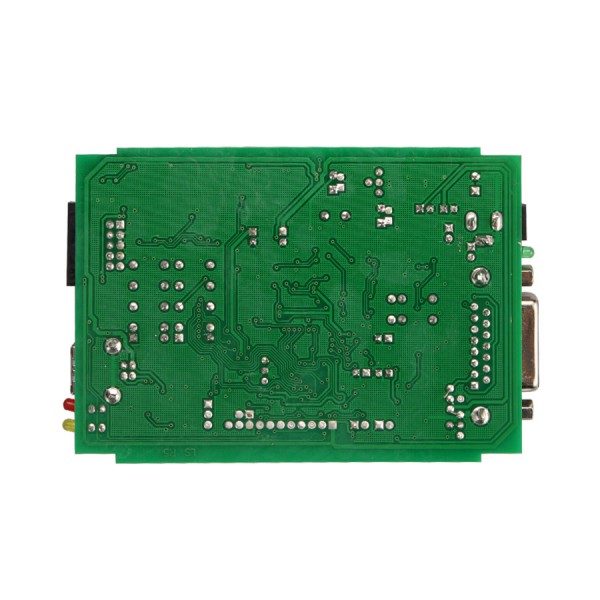

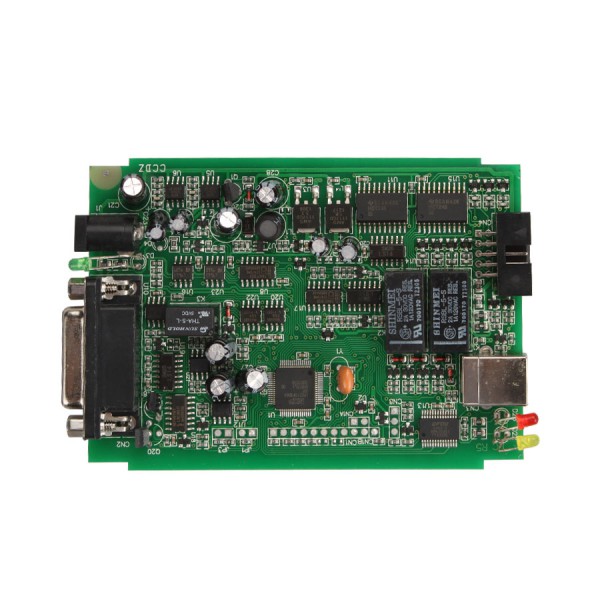

FG Tech Galletto 2-Master V54 PCB Board:

FGTech Galletto 4 BDM-TriCore-OBD Function PCB Board-1
FGTech Galletto 4 BDM-TriCore-OBD Function PCB Board-2

FGTech Galletto 4 Support Vehicle Models List:
Cars:
Alfa Romeo,Audi,BMW,Cadillac,Chevrolet,Chrysler,Citroen,Corvette,Dacia,Doge,Ferrari,Fiat,Ford,Honda,Hummer,Hyundai,Isuzu,Jaguar,Jeep,Kia,Lancia,Land
Rover,Maserati,Mazda,Mercedes,Mini,Mitsubishi,Nissan,Opel,Peugeot,Porsche,Renault,Rover,Saab,Seat,Skoda,Smart,Ssangyong,Suzuki,Toyota,Volvo,VW.

Trucks:
Astra Truck,Case,Claas,DAF Truck,Deutz Fahr,Fendt Tractor,Hurlimann,John Deere,Iveco,Iveco Marine,Lamborghini,Landini,MAN Truck,Massey Ferguson,MC Cormik,Mercedes Truck,New Holland Tractor,Nissan Truck,Renault Truck,Same,Scania Truck,SISU Engine,Steyr,Valtra Tractor,VW Truck,Volvo Penta,Volvo Truck.

Motorbikes:
Aprilia,Ducati,Gilera,Moto Guzzi,Moto Morini,MV Agusta,Piaggio,Quad BRP.
