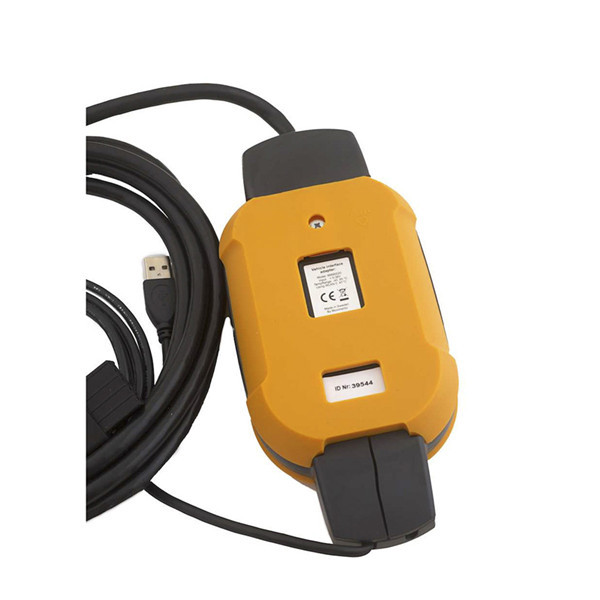

VCADS 88890180 Truck Diagnostic Interface for Volvo / Support Multi-languages
Volvo 88890180 Interface is developed for Volvo/ vehicles and engines and enables PC to vehicle communication via a USB cable or by wireless LAN using the 802.11 b/g standard.
Volvo 88890180 Interface has a number of different colored LEDs, which show the status of the communication unit and indicate warnings, etc.
Top 3 Reasons to Get VCADS 88890180:
1. Supported languages:
English, Czech, Danish, German, Spanish, French, Italian, Hungarian, Polish, Portuguese, Romanian, Serbian, Slovenian, Turkish, Russian
2. Connect via both USB Cable or Wireless Lan
3. Support Volvo Trucks, VOLVO CONSTRUCTION EQUIPMENT (CE), TRUCKS (with DXi engines)
Volvo 88890180 Interface Specification:
Operating temperature range: -40 to +85°C.
Storage temperature range: -40 to +125°C.
How to connect Volvo Interface 88890180 to vehicle
Via USB-cable
1. Connect the communication unit to the vehicle.
2. Connect the USB-cable between the communication unit and the PC.
3. Select communication unit 88890180 and USB-cable setting in window Alternative.
Directly to the communication unit
Note: Your PC must have Wireless LAN 802.11b/g adapter and support 128-bit WEP encryption. The WEP-key is generated automatically and is not seen during the configuration.
1. Connect Volvo 88890180 (VCADS) interface to the vehicle.
2. Select communication unit 88890180 and Direct to communication unit in window Alternative.
Via an access point
Note: Contact the local IT-support or network technician before installation.
1. Connect Volvo 88890180 (VCADS) interface to the vehicle.
2. Select communication unit 88890180 and Via an access point in window Alternative.
Volvo 88890180 (VCADS) vehicle list:
VOLVO TRUCKS:
AC, FM10, NH565, FH12, FM12, VHD, FH16, FM7, VN, WC, WG, WI, FH565, NH12, FL6,FL7, FL10, FL12, NH525, WX, COMP04, FE, VHD, FH, FM, VM, FM9, F10, F12 , F16, NL10, NL12
VOLVO BUSES: B10B, B10M, B10L, B10R, M10R, B12, B58, B6, B7R, OLYMPIAN, SUPEROLY
VOLVO CONSTRUCTION EQUIPMENT (CE):
Wheel loader: L110E, L110F, L120E, L120F, L150E, L150F, L180E, L180F, L220E, L220F, L330E, L350F, L60E, L60F, L70E, L70F, L90E, L90F
Articulated Hauler: A25D, A25E, A30D, A30E, A35D, A35E, A40D, A40E, T450D
Excavator: EC135B, EC140B, EC140C, EC160B, EC160C, EC180B, EC180C, EC210B, EC210C, EC235C, EC240B, EC240C, EC290B, EC290C, EC330B, EC330C, EC360B, EC360C, EC460B, EC460C, EC700C, EC700B, EC700C, ECR145C, ECR235C, ECR305C, EW140B, EW140C, EW145B, EW145C, EW160B, EW160C, EW180B, EW180C, EW200B, EW210C, FC2121C, FC2421C, FC2924C, FC3329C, PL4611
Grader: G710B, G720B, G726B, G730B, G740B, G746B, G780B, G930, G940, G946, G960 ,G970, G976, G990
Compact Excavator: ECR88
TRUCKS (with DXi engines):
CESAR, KERAX, KERAXMIL, MAGNUM, MIDLUM, PREMIUM, SH 23, SH 510
Package including:
1pc x Volvo 88890180 (VCADS) Auto Diagnostic Interface Main Unit
1pc x OBD2 Cable
