    Product Details:

    Place of Origin: China
    Certification: CE
    Whatsapp: 86-13480159018
    Skype: oneflysky

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: USD 1599-1750/set
    Packaging Details: Inch:15.75*11.42*3.94
    Delivery Time: 2 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal,
    Contact Now
    Detailed Product Description
    Item Name: OBDSTAR X300 DP Plus Warranty: Two Year Warranty
    Update: One Year Free Update Online Delivery: Fast Via DHL,UPS,Fedex,TNT,Aramex
    Quality: High Quality Delivery Time: Within 48 Hours
    Package: Safety Package Payment Method: TT/Paypal/Western Union /Money Gram

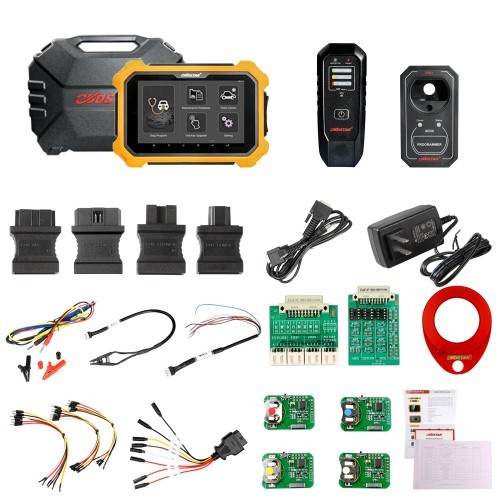

    OBDSTAR X300 DP Plus X300 PAD2 C Package Full Version:
    Immobilizer+Mileage correction+Diagnosis+Special function (Oil rest +ABS+Battery matching+ECU programming+EPB+Throttle programming+Airbag rest+TPMS+Steering angle rest+OBDII+DPF+Injector code+Supension matching+Gear learning+CVT learning+EEPROM+Key renewing+ECU cloning)Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable+Toyota smarkt key Emulator)+others(Ignition coil+Remote tester)
    OBDSTAR X300 DP Plus X300 PAD2 C Package Full Version

    This device is a new Android-based vehicle trouble diagnostic device developed for internet applications. It inherits from OBDSTAR advanced diagnosing technology and it is characterized by covering wide range of vehicles, featuring powerful function, and providing precise result. Through vehicle diagnostic OBD connector and variant mobile
    intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle.

    Meanwhile, taking advantage of mobile internet, this device integrates more application and service, such as Maintenance Database, remote assistant, One Key Upgrade etc.

    OBDSTAR X300 DP Plus X300 PAD2 C Package Full Version Functions

    Immobilizer+Mileage correction+Diagnosis+Special function (Oil rest +ABS+Battery matching+ECU programming+EPB+Throttle programming+Airbag rest+TPMS+Steering angle rest+OBDII+DPF+Injector code+Supension matching+Gear learning+CVT learning+EEPROM+Key renewing+ECU cloning)Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable+Toyota smarkt key Emulator)+others(Ignition coil+Remote tester)

    OBDSTAR X300 DP Plus Hardware Features

    1. The built-in VCI box offers more stable communication.
    2. The 8" touch screen offers better vision experience.
    3. Allow the user to charge by the OBD port of car. Not like the X300 DP 7" Pad, which need to be 100% charged before use.
    4. With specialized toolkit, high grade and practical.
    5. Industrial -grade design, comes with the silicone sleeve
    6. The back bracket allows the user to hang it on the steering wheel or stand on the table, which brings great convenience to the operator.
    7. Comes with Toyota Lexus Emulators (The first 4 pieces are already released, and the 5th one is under development)
    8. The following 3 adapters are integrated into the X300 PAD plus: EEPROM /PIC 2-in-1 adapter, RFID adapter (VW Audi 4th / 5th IMMO programming and other cars e.g Porsche, BMW, Fiat etc.) and Renew Key PCF79XX adapter.
    9. Adds the clip for reading SOP 8PIN EEPROM.
    10. Adds the cables for reading ECU via OBD (Used to clone ECU and active the switch).

    OBDSTAR X300 DP Plus Software Features

    1. Clone ECU
    Clone ECU means copy ECU, that is the OBDSTAR X300 DP Plus copies the data from the original car ECU, then write it into another same ECU hardware, so that it can achieve the same function as the original ECU.
    When you want to change the new ECU or the second ECU, if you use X300 DP Plus to clone via OBD, you won't need to go to the 4s store to do the online programming or dismantle ECU to weld, read & write.
    ECU clone Pros :
    No need to go to 4S shop, convenient, fast and save money.
    Simplify the operating steps, even the amateur can also operate.
    No need to dismantle and weld the ECU to read & write, it is zero risk to clone ECU via OBD with the X300 DP Plus.

    2. Switch activation function
    Nowadays, many car models' secondary power supply of the dashboard or audio equipment needs to be activated to enter the boot status through the related module CAN.
    However, when the car technician maintains the dashboard / audio equipment, the main unit is out of the CANBUS network so it maybe won't boot. X300 DP plus " switch activation function" can emulate the CANBUS communication to active the power supply of dashboard / Audio so that it can enter the boot status, then it will test and verify the dashboard and the Audio, also the technician can save money avoiding to purchase many the boot platform and cables of kinds of car models.

    3. Adds the "Help" function including the testable car models, update notice, special features, help instruction, wiring diagram etc.
    Testable car models: The user can read the testable car models and year.
    Update notice: The user can read all of the update content.
    Features: The user can read all of the special features and the functions that only X300 DP Plus supports.
    Help instruction: Built-in the guide and instruction for each car model or function.
    Wiring diagram: Built-in ECU wiring diagram, more intuitive and convenient.

    4. Maintenance database: equipped with powerful database.
    5. Video center: large amount of videos help users to operate device easily.

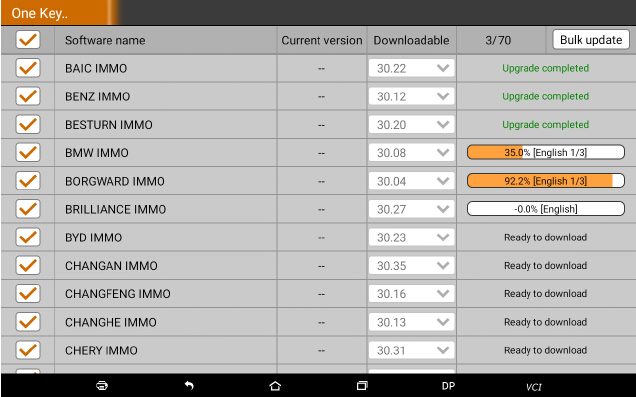

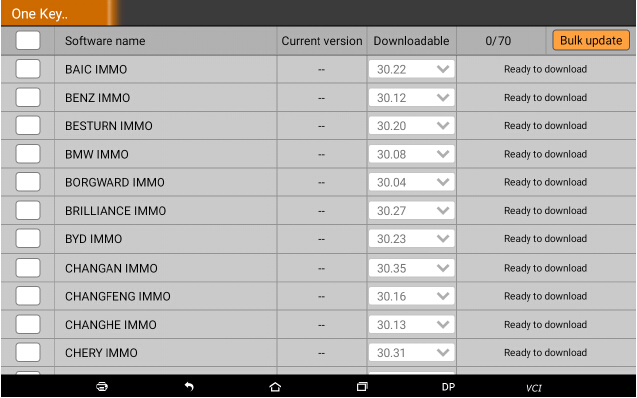

    6. One Key Upgrade: built-in WIFI mode can realize application downloading and diagnostic function by one key upgrade.
    7. System setting: set VCI formation, language, unit, data logging, user information etc.
    8. Remote assistance: achieve remote assistance by this function.
    9. Report center: record maintenance data logging and create reports during operation.
    10. USB Inspection Camera (optional): Flexible and long pipe with HD camera, it can reach car interior pipeline or narrow space to have an overall inspection.

    OBDSTAR X300 DP Plus Technical Parameter

    ● Operation system: Android 5.1.1
    ● CPU: Exynos4418 Dual Core ARM Cortex A9 1.4GHz
    ● Battery: 3700mA, rechargeable polymer lithium battery
    ● Extension memory card: 32G Micro SD (TF) card supported
    ● Memory capacity:1GB
    ● Storage capacity: 32GB
    ● LCD: 8.0 inch
    ● LCD resolution: 1280*800
    ● Touch screen: Capacitive touch screen
    ● Camera: 5 mega rear view camera
    ● Wi-Fi: supported
    ● Working temperature: -10 ~ 55℃(14°F ~ 131°F)
    ● Storage temperature: -20 ~ 70℃(-4°F ~ 158°F )
    ● Weight: about 1.0 Kg
    ● Dimension: 254mm*174*mm*35mm

    Different among OBDSTAR X300 DP Plus C Package (Full Version), A Package and B Package:

    Functions

    Regional market

    Software Configuration

    X300 DP plus

    Remark







    A package

    B package

    C package



    Immobilizer / Remote programming

    European cars

    VW/Audi/Skoda/Seat (Standard)



    VW/Audi/Skoda/Seat (Advanced)

    add NEC 24C64 2014-key programming.

    BMW (Standard)









    BMW (Advanced)

    Add FEM/BDC key programming,

    ISN code reading etc.

    Volvo



    The other European cars



    Asian cars

    Hyundai /Kia (Standard)









    Hyundai /Kia (Advanced)

    Add 47/8A/46 smart key pin code reading

    Toyota /Lexus (Standard)









    Toyota /Lexus (Advanced)

    For Middle east cars, it adds H

    chip all keys lost (Immo box reset)

    The Asian cars



    North American cars

    Ford(Standard)









    Ford (Advanced)

    Add Ford after 2015 key

    programming functions, I.E: Mobdeo,Edge,Taurus,Escort,

    EVEREST,Explorer,F-150 SVT Raptor,Mustang,Lincoln MKZ, MKC and Continental 2015 - etc.

    GM(Standard)









    GM(Advanced)



    The other American & Chinese cars

    Can perform BMC pin code reaing on these cars: -2017 Lacrosse,Lacrosse, Trax,Envision, GL8,MALIBU,AVEO,Excelle before 2015,Cruze etc.

    Cluster Calibration



    All cars cluster calibration









    4-system diagnosis







    Engine, Transmission, ABS, airbag reset

    OBDII Diagnosis



    Full functions diagnosis





    Full-system all-cars diagnosis

    Special function



    Oil service reset





    Reset the Oil Service Light on



    Manual remote setting







    Some cars only supports manual remote setting.



    ABS bleeding





    After replace the ABS pump and related components.



    Battery matching





    After the battery is changed, you need to match the battery.



    ECU programming









    The car with EPB replace brake pads





    Electronic Parking Brake release



    Throttle programming





    Used to clear the learning value after cleaning the throttle, otherwise it will cause high idle speed.



    Airbag reset





    Used to clear airbag ECU collision data after a vehicle collision, otherwise the ECU cannot be reused



    TPMS reset





    Used for reset after tire pressure alarm



    Steering angle reset





    Replacement of data lost after steering angle change or power off



    OBDII Engine





    Used to diagnose the car with OBD protocol.



    DPF Regeneration





    Diesel Particulate Filter Operational



    Injector coding





    Used to match and code the injector after replacement



    Suspension match





    Used to match and set the suspension after adjusting.



    Gear learning





    Used to learn the crankshaft position sensor after power off (only the domestic vehicle equipped with the Delphi system has this function)



    CVT learning





    Used to reset the learning value after maintenance of CVT transmission



    EEPROM





    Read and write the eeprom; read 8-pin IC chip password and reset some models anti-theft



    Key Renew





    Renew the used keys to solve the problem that used keys cannot be matched to other models



    Steering angle repair





    Used for the repair of lost data of vehicle steering angle sensor



    ECU Clone





    Used for copying the program when replacing the new/second-hand computer.



    Switch activation







    Hardware



    P001 Programmer unit





    C001 circuit board





    C002 circuit board





    W001 data cable





    W002 data cable





    W003 data cable





    Toyota smart key emulators





    Remote Tester





    Anti-theft Induction coil

    Used to test if the coil can send out the transmit signal.


    Read post: Why OBDSTAR X300 DP Plus is a good investment even expensive

    OBDSTAR Update Information:

    Update Announcement on July 2018 2018-07-02 First Released

    GM ECU Clone (Key Master DP Plus C Configuration)

    1. Increased BOSCH 70F3558+24C32 read and write EEPROM,read and write FLASH
    2. Increased BOSCH 70F3385+24C16 read and write EEPROM,read and write FLASH
    3. Increased BOSCH 70F3469+24C16 read and write EEPROM,read and write FLASH
    4. Increased DELPHI 70F3238+93C86 read and write EEPROM,read and write FLASH
    5. Increased DELPHI 70F3379+93C86 read and write EEPROM,read and write FLASH
    6. Increased CONTINENTAL 70F3469+95160(25160) read and write EEPROM, read and write FLASH
    7. Increased CONTINENTAL 70F3558+95320(25320) read and write EEPROM, read and write FLASH

    IMMO

    (Key Master DP/Key Master DP Plus)
    Increased Koleos 11-16 key programming

    Bentley (Key Master DP/Key Master DP Plus)
    Support P001 programmer

    GM Key Master DP/Key Master DP Plus
    Support P001 Programmer

    Key Master/Key Master DP/Key Master DP Plus
    Optimize the text tips with‘obdstar’to be‘The third-party platform’

    Porsche (Key Master/Key Master DP/Key Master DP Plus)
    Solved the flash back in Cayenne type2 pincode reading and key programming

    Changan (Key Master/Key Master DP/Key Master DP Plus)
    Optimize Changan X70A car body system

    FORD (F100/H100/Key Master/Key Master DP/Key Master DP Plus)
    Solved the repeat request of security verification in Ford Explorer 11-15 key programming

    BAIHC (Key Master/Key Master DP/Key Master DP Plus)
    Increased Weiwang M50F 2017 smart key system

    BMW (Key Master DP/Key Master DP Plus)
    1. Solved the unstable problems in key learning
    2. Updated the SWFL version to be ISTA64

    Rongwei/MG (Key Master/Key Master DP/Key Master DP Plus)
    1. Optimize the Rongwei I6 smart key system
    2. Increased Rongwei 950(2012-) pincode reading

    Nissan/Infiniti (F102/Key Master DP/Key Master DP Plus/Key Master
    Optimize Nissan Note smart key system(cancel the byte judgement for 03 31 01 01)

    VW/AUDI/SKODA/SEAT (Key Master DP/Key Master DP Plus)
    Support P001 programmer

    Toyota/Lexus (Key Master DP/Key Master DP Plus)
    1. Released 4 Toyota simulation smart keys
    2. Optimize the No.1 Toyota simulation smart key acquire IMMO data via internet(write key data)

    Suzuki (F109/Key Master/Key Master DP/Key Master DP Plus)
    Optimize the JIMNY menu in IM_JIMNY system

    Opel (Key Master/Key Master DP/Key Master DP Plus)
    1. Increased the pincode reading from BCM system
    2. Increased Combo/Meriva remote system
    3. Increased Astra G/Astra K/Cascada 2013/Combo 2012/Corsa-D 2005-/Frontera 1998-/Monteray 1996-/Signum /VX220/Zafira-B
    Cavalier 1995-2004/Agila B -2009,2009-/Movano 2005-2010,2010- IMMO system

    Baojun (Key Master/Key Master DP/Key Master DP Plus)
    Optimize the text tips with‘obdstar’to be‘The third-party platform’

    Mazda (F100/H100/Key Master/Key Master DP/Key Master DP Plus )
    Optimize the text tips with‘obdstar’to be‘The third-party platform’

    Traum (Key Master/Key Master DP/Key Master DP Plus)
    Increased S70 car body system and smart key system

    Lamborghini (Key Master DP/Key Master DP Plus)
    Support P001 programmer

    Key Renew (Key Master DP/Key Master DP Plus)

    1. Support P001 programmer
    2. Updated the ‘Help’text

    Cluster Calibrate

    VW (H110/VAG Pro/X300M/Key Master/Key Master DP/Key Master DP Plus B Configuration/C Configuration)
    Increased security calculation types

    GM (X300M/Key Master/Key Master DP/Key Master DP Plus B Configuration/C Configuration)
    Optimize GMC Sierra 2015 communication time

    Fiat / Ferrari (X300M/Key Master/Key Master DP/Key Master DP Plus B Configuration/C Configuration)
    Increased the ‘Other’menu

    Porsche (X300M/Key Master/Key Master DP/Key Master DP Plus B Configuration/ C Configuration)
    Solved security verification problems in EEPROM reading of 2015 panamera

    FORD
    F100/H100/X300M/Key Master/Key Master DP/Key Master DP Plus B Configuration/ C Configuration
    1. Increased Ranger2015-dashboard type SPC5645S+93C86
    2. Optimize SPC5645S+93C86 type cluster calibrate

    X300M/H100/Key Master DP/Key Master DP Plus B Configuration/ C Configuration
    Increased KA R5F10 V1/KA R5F10 V2/KA R5F10 V3/Figo/Aspire 2016-2018 cluster calibrate

    BMW (Key Master DP/Key Master DP Plus)
    Increased FEM/BDC odometer reset

    ECU Programming

    BMW (Key Master DP Plus C Configuration)
    1. First release EGS 8HP reset function
    2. Increased FEM/BDC ECU programming

    ECU Clone

    Peugeot (Key Master DP Plus C Configuration)
    1. Increased EOX EEPROM reading and writing
    2. Increased H0X/K0X/KEX/N0X/P0X/Q0X/S0X/X0X BSI EERPOM and FLASH reading and writing

    Switch Activation

    Key Master DP Plus C Configuration
    1. Increased VOLVO S60 2011 and Land Rover Evoque 2016 dashboard activation
    2. Revised all the wiring instruction
    3. Improved ‘Help’section

    EPB

    VAG Pro/X200 Pro/Key Master Full Configuration/Key Master DP Full Configuration/Key Master DP Plus C Configuration
    Increased vehicles as follow:
    Bentley/Seat/Skoda/VW/FAW-VK/Shanghai Volkswagen
    Zotye:SR9,SR7(2017),E200,T300,T700,T600_COUPE,T600 sports
    Changcheng:Hover H6 COUPE,Hover M6
    JAC:Ruifeng A60,Ruifeng S7,Ruiying
    Geely:Vision X6,EC7 series(emgrand,new emgrand),emgrand EV,emgrand EV300,emgrand HEV,emgrand PHEV
    Changan Ford: EDGEGALAXYS-MAX,Fiesta MY2013,Transit Connect,Transit ConnectTourneo Connect,TransitCourier
    Citroen:C4,C4 SEDAN,C4 (B7),C4 PICASSO,DS 4-DS 4 Crossback,DS 4S

    APK Optimization

    1. Solved the calculation bug
    2. Clear login cache

    OBDSTAR X300 DP Plus X300 PAD2 Package List

    Key Master DP Plus Unit
    Main Wire
    12V2A DC Charger
    KIA-20
    OBD II-16 Connector
    HAIMA-17
    HONDA-3
    HYUNDAI/KIA-10
    IMMO Induction Coil
    Muti-functional Jumper
    P001 Programmer Unit
    C001/C002 Circuit Board
    W001
    W002
    W003
    RT100
    TOYOTA Simulation Smart Keys
    Configuration List/Certificate/Quick Start Guide Fold

    OBDSTAR X300 DP Plus Software Update Instruction:
    Tap "One Key Upgrade" to enter one key upgrade page, as following picture shown:

    obdstar x300 dp pad2 plus update-1

    Tap “One Key Upgrade” to start downloading, enter main interface after finishing downloading. (Notes: Ensure internet connection is normal when updating. Besides, because of many software, it may take several minutes, please wait patiently) If need to cancel a software, just tap corresponding Check Box as following picture shown:

    obdstar x300 dp pad2 plus update 2
    Contact Information
    Whatsapp: +86-13480159018
    Email: tina@pro-diagtool.com
    Skype: oneflysky

    If you have any doubts on price & products , please do not hesitate to contact us.

    Contact Details
    Shenzhen MS Auto Technology Limited

    Contact Person: tina

    Send your inquiry directly to us (0 / 3000)
