X431 Pro Full System Automotive Diagnostic Tool with Bluetooth/Wifi is newly release automotive diagnostic tool based on mobile technical.Through the Bluetooth communication between vehicle diagnostic connector and variant mobile intelligent terminals, it achieves X431 series full car model and full system vehicle trouble diagnosis.
New Release Launch X431 Pro Full System Automotive Diagnostic Tool with Bluetooth/Wifi
Language: English, German, Italian, Japanese, Russian, French, Portuguese, Spanish, Traditional Chinese
Bluetooth Distance: 10M (Without Obstacle)
Notice: Two Year Free Update online, after 2 years update cost is 650USD.
X431 Pro Supported Car Models:
Acura, Changan, Daweoo, Gaz, Hafei, Huachen, Jiao, Lexus, Xiali, Xinkai, Benz, Fiat, Holden, Maruti, Opel, Peugeot, Saab, Ssangyong, Tata, Changhe, Flyer, GMSA, Infiniti, Mahindra, Perodua, Proton, Qirui, Tlisuzu, Zhongshun, EOBD2, Euro, GM, Jaguar, , Smart, Sprinter, USA , VAZ, VW, Changcheng, Dacia, , HaoQing, Jinlong, Liuwei, Rover, ZhongTai, ZhongXing, Bxfiat, HM, Isuzu, Jacty, JPIsuzu, Mazda, Seat, Skoda, Suzuki, BMW, Daihatsu, Mitsubishi, Porsche, Toyota, Volvo, Audi, Chrysler, Citroen, Hyundai, Kia, Lancia, Landrover, Nissan, Romeo and Subaru.
What is X431 Pro?
X431 Pro is a new diagnostic tool release by Launch tech. It composed of an X-431 PRO pad computer, a protection sleeve, a DBScar diagnostic connector and many OBD1 to OBD2 connector. It communicate with your car by DBSCAR connect with bluetooth, it read car DTC and do diagnose function by the X431 Pro Pad computer, it achieves X431 series full car model and full system diagnose function, it can replace X431 Diagun III or X431 IV.Meanwhile, taking advantage of mobile internet, it integrates more application and service, such as creating maintenance data base and case library, providing instant maintenance information, establishing public and private maintenance social circle etc. As a result, it builds a broad vehicle diagnostic community, which helps you to share vehicle maintenance knowledge online, exchange vehicle maintenance experience online and provide vehicle maintenance related service support online. This will be another revolution raised by Launch in the vehicle diagnosis industry.
Knowleage of X-431 Pro:
X431 Pro Main Unit Contain 3 Parts:
A ---- X-431 PRO pad computer
B ---- Protection sleeve
C ---- DBScar diagnostic connector

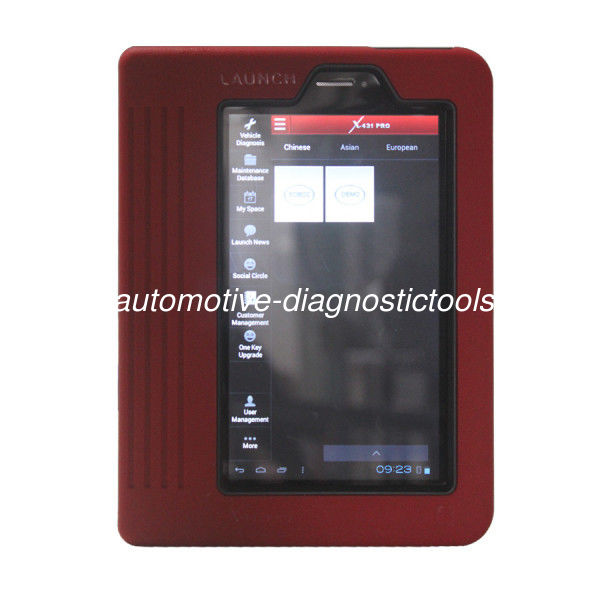

X431 Pro Pad Computer:
1) In Off mode, press it to turn on X-431 PRO;
2) In On mode, press it to activate the LCD if the LCD is blank.
3) In On mode, press it to turn off the LCD if the LCD lights up
2. VOLUME +/- key: Used to adjust the volume
3. Earphone jack
4. Rear camera
5. Reset key (Inside the housing)
6. SD card slot
8. USB port
X431 Pro DBSCAR Connector:
1. OBD-16 diagnostic connector: To connect to vehicle’s OBD2 DLC.
2. Power indicator: It lights up while plugging the DBScar connector into the vehicle’s DLC.
3. Communication indicator: It will flash once the DBScar connector is communicating with X-431 PRO or it is being reset.
4. Micro USB port: To connect to PC for data transmission or upgrade via USB cable.
X-431 Pro Function and Feature:
1. Full Diagnose Function:
X431 Pro can diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and China. Full range car models and full car system diagnose make it a professional automotive diagnostic tool.
Diagnosis functions include: Read DTCs, Clear DTCs, Read datastream, Special functions etc;
2. Connecting by Bluetooth
X431 Pro communication via bluetooth, very easy to use. X431 Pro Pad computer specially designed for Android platform with clear and user-friendly interface. X431 Pro Pad computer equipped with an exclusive X-431 PRO protection sleeve to prevent it from being damaged;
Built-in Wi-Fi module makes surfing on the internet freely;
To configure your personalized X-431 PRO through it;
Enables you to locate your target quickly and conveniently;
Allows you to send and receive email. External POP3 or IMAP email account for some common Web email service provider can be added;
You can manage the files or downloaded files stored in SD card efficiently;
8. Other Additional Functions:
Alarm, calendar and calculator etc.
Other android based applications can be customized to install or uninstall.
X431 Pro Parameter:
Operating System: Android
CPU: Dual core 1GHz
Battery: 3000mh, rechargeable polymer lithium battery
Standby time: it is subject to the using environment. Generally it can keep working for 4 hours.
Extension memory card: 32G Micro SD(TF) card supported
Storage capacity: 2GB
LCD: 7.0 inch
LCD resolution: 1024X600
Touch screen: 5 points capacitive touch screen
Cameras: 2 mega rear and 0.3 mega front
Working temperature: -10℃ ~ 55℃ (14°F to 131°F)
Storage temperature: -20℃ ~ 70℃ (-4°F to 158°F)
DBSCAR Connector Parameter:
Working voltage: 9 ~15V
Average working current: about 35mA
Standby current: about 25mA
Working temperature: -20 to 55℃ (-4°F to 131°F)
Storage temperature: -30 to 70℃ (-22°F to 158°F)
Storage humidity: <80%
Working humidity: <60%
X431 Pro Package List:
X-431 PRO pad computer
X-431 PRO protection sleeve
DBScar diagnostic connector
OBD II extension cable
Cigarette lighter cable
USB data cable
